YD-22 Hydraulic Rail Ballast Tamping Machine
PRODUCT DESCRIPTION

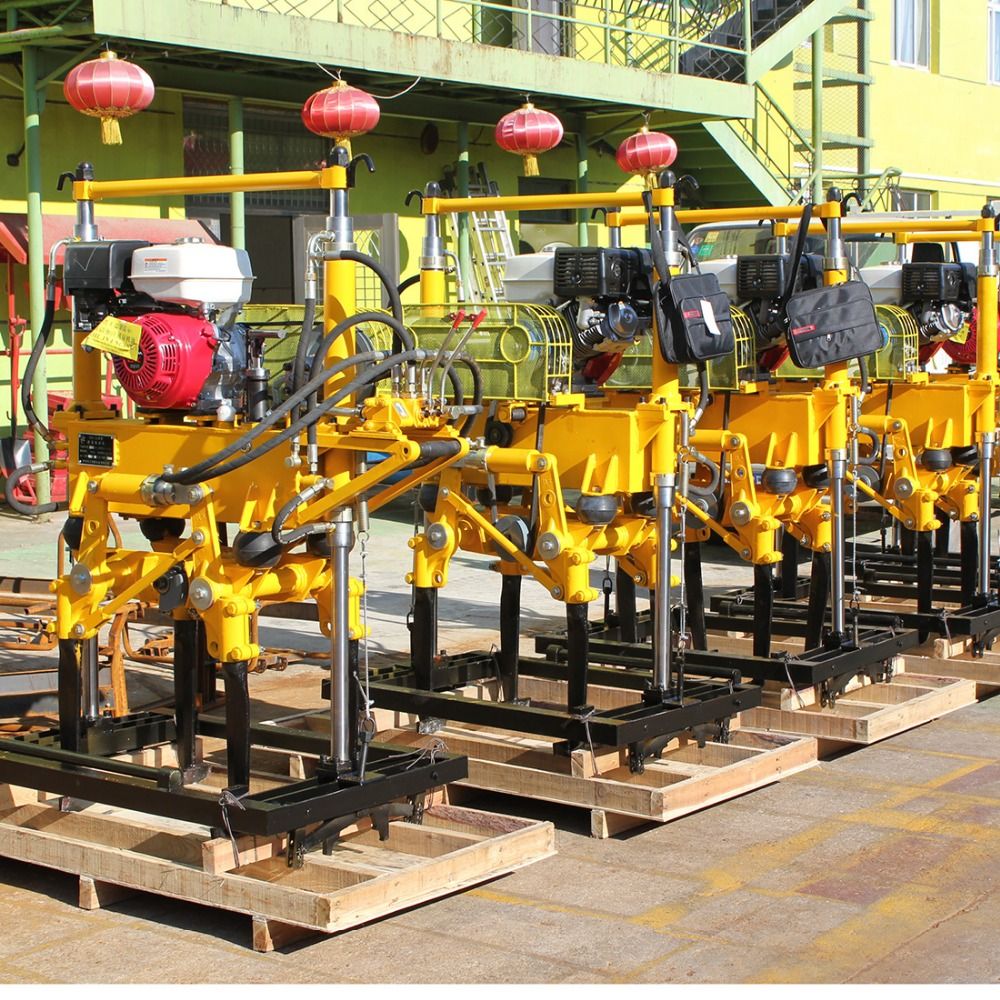

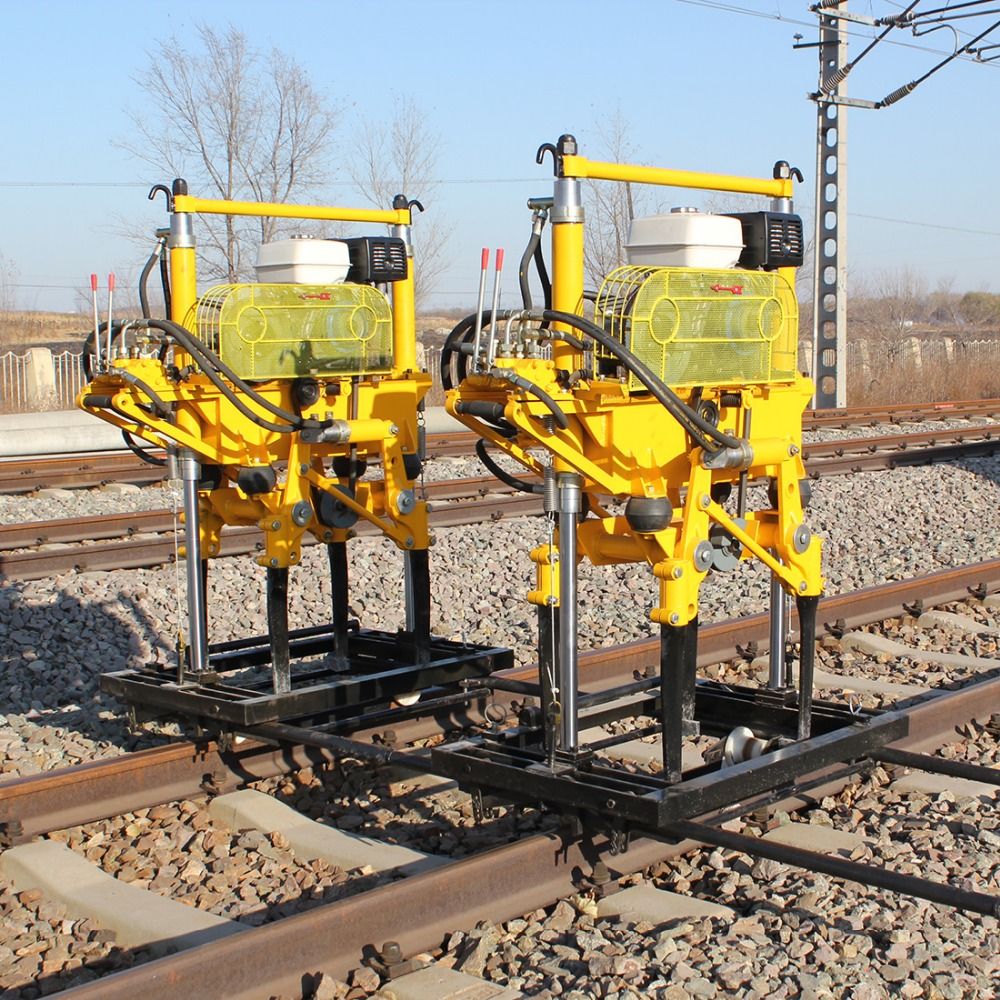

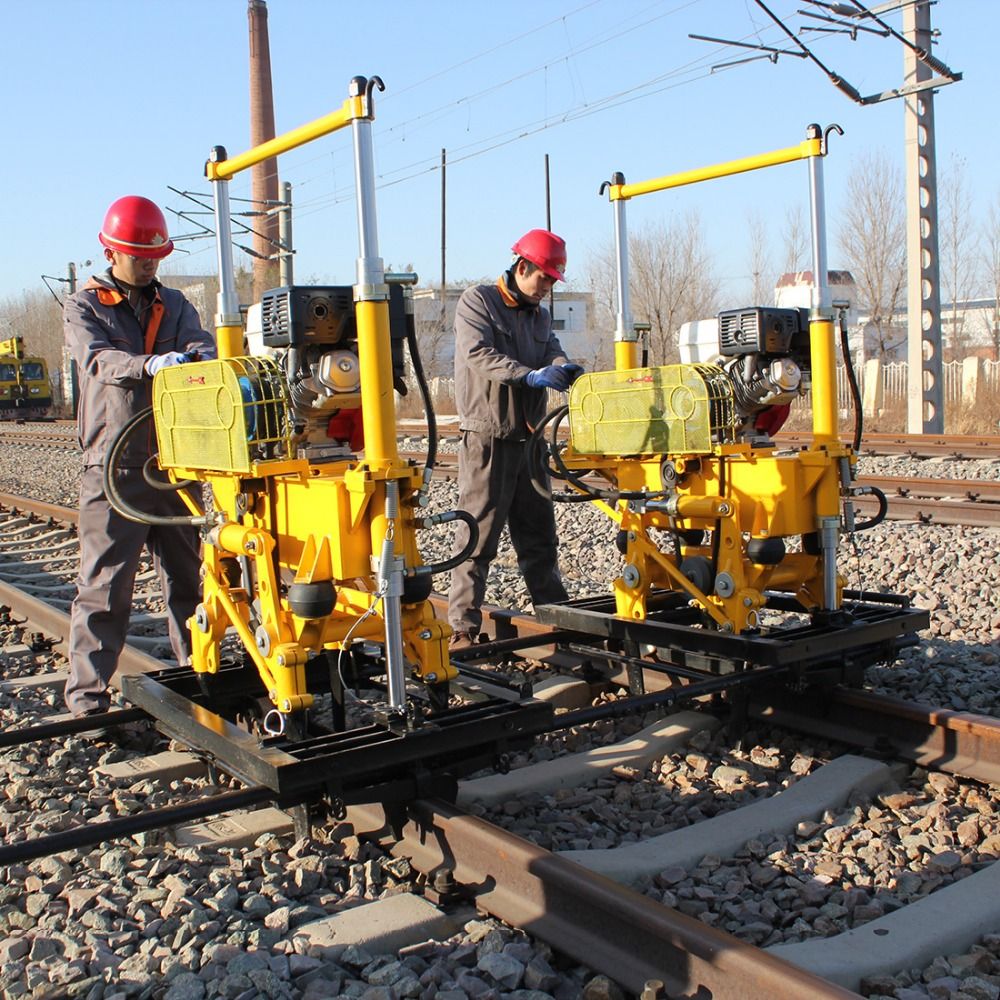

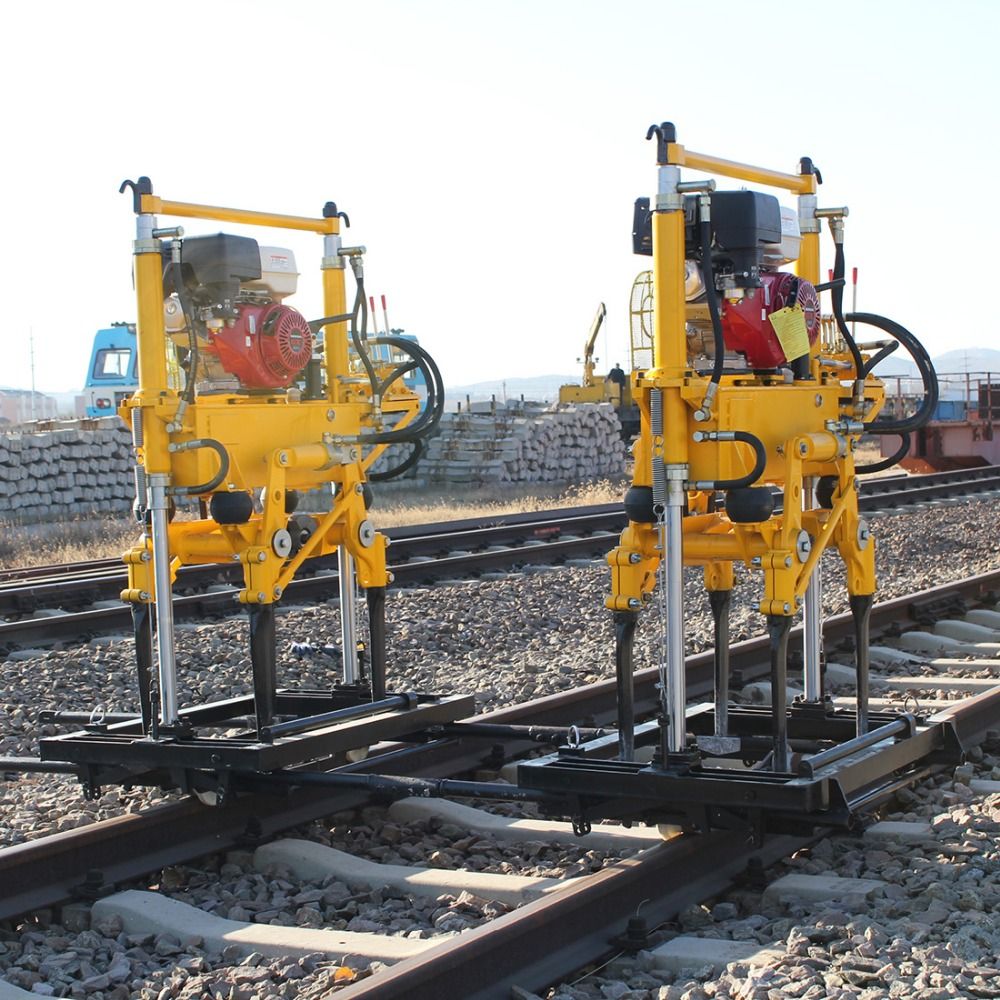

YD-22 Hydraulic Rail Tamping Machine
The machine is suitable for tamping operation on various rail and concrete sleeper track after the overhaul and medium ballast cleaning operation, and also suitable for tamping operation on the ballast bed of new track. This machine has the features of high quality performance, reasonable structure, reliable and high working efficiency, which will satisfy the requirement of ballast tamping operation.
SPECIFICATION
|
Model
|
YD-22
|
|
Type
|
Rail Tamping Machine
|
|
Material
|
Stainless Steel
|
|
Dimensions (L x W x H) (mm)
|
1300 * 750 * 1600mm
|
|
Engine
|
Diesel Engine SF190
|
|
Power
|
7kW
|
|
Vibrating force
|
22kN
|
|
Vibrating frequency
|
66.7Hz
|
|
Hydraulic system working pressure
|
5~6MPa
|
|
Max insert force
|
16kN
|
|
Max clamping force
|
6.5kN * 2
|
|
Production efficiency
|
≥ 270 pieces / (group • hour)
|
|
Inserting depth
|
110mm ± 10mm (underneath the sleeper)
|
|
Weight
|
439kg
|
