Rail bottom welding joints milling machine

Rail Bottom Welding Joints Milling Machine

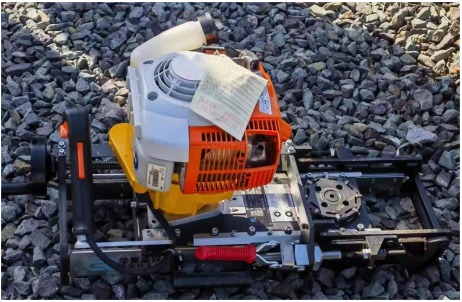

The rail bottom welding joints milling machine is a special small machine to remove the rail bottom welding joints after the rail welding and rail shearing work, which can remove the residual amount of the rail bottom welding joints with high quality and high efficiency, and achieve the purpose of repairing the welding track.

Technical parameter

Engine model: STIHL FS120
Engine type:  2-stroke, single-cylinder, air-cooled gasoline engine
Engine displacement:  30.8cc
No load idle speed:  ≤2800 rad/min
Max.power / speed:  1.3kW /9000 rad
Max.speed:  12000rad/min
Fuel oil:  90 # and above, unleaded gasoline
Fuel capacity:  0.64 L
Engine oil:  Above SE, SJ10W-30 is recommended
Milling blade speed:  190-254 rad/min
Milling specification:  φ100*φ32*16mm (OD*ID*thickness)
Numbers of milling cutter teeth:  6
Milling blade model and material : 4130511/YW2
Transmission ratio of deceleration box:  47.2:1
Dimension(L*W*H):  680*360*350mm
Gross weight:  30kg±2kg
