Rail Excavator

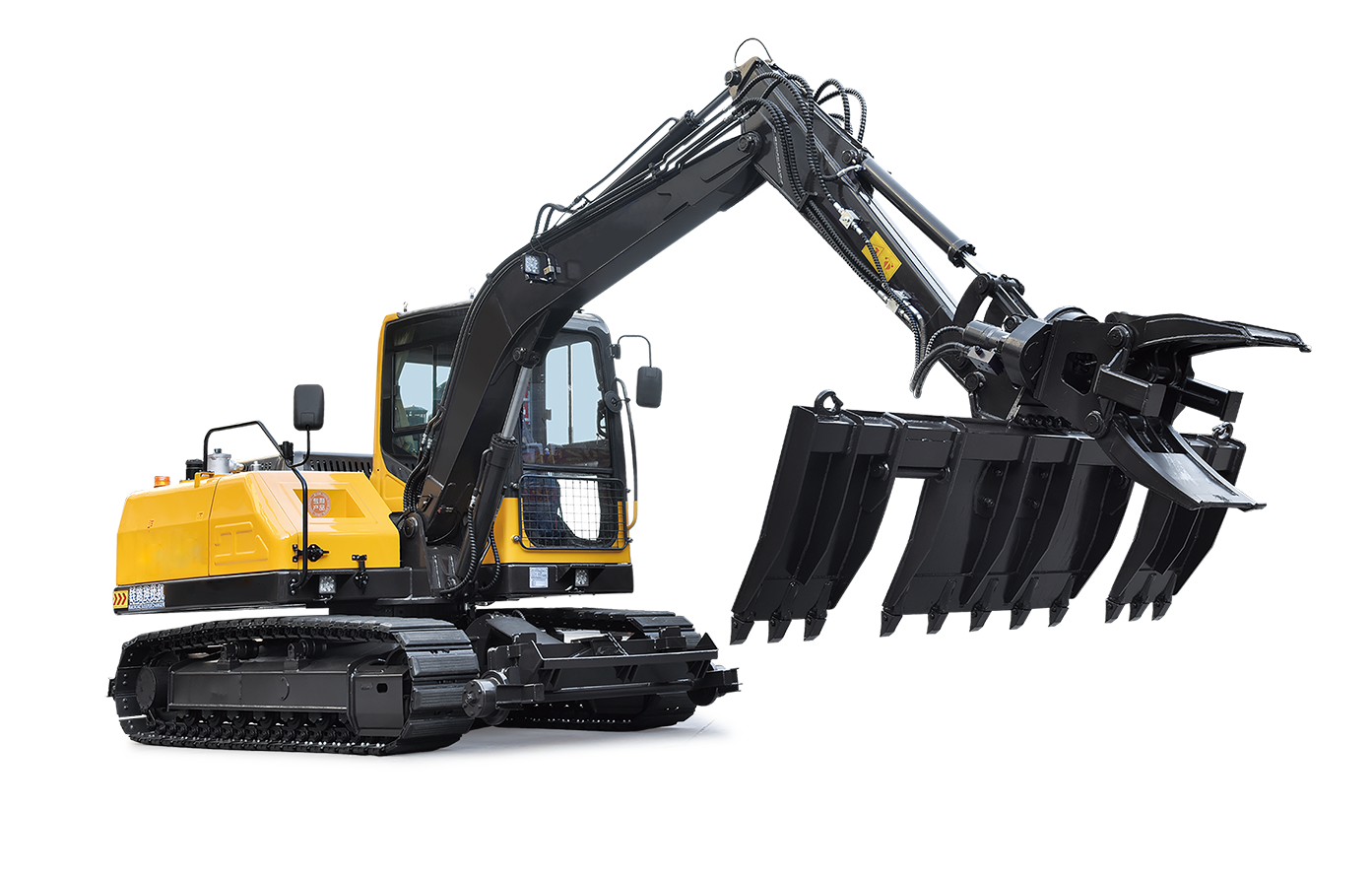

Railroad Crawler Excavator
A crawler excavator, also known as a tracked excavator, is a heavyweight construction machine designed for demanding excavation and earthmoving tasks. Unlike wheeled excavators, crawler excavators feature a set of reinforced tracks that provide exceptional stability and traction on rough terrains.

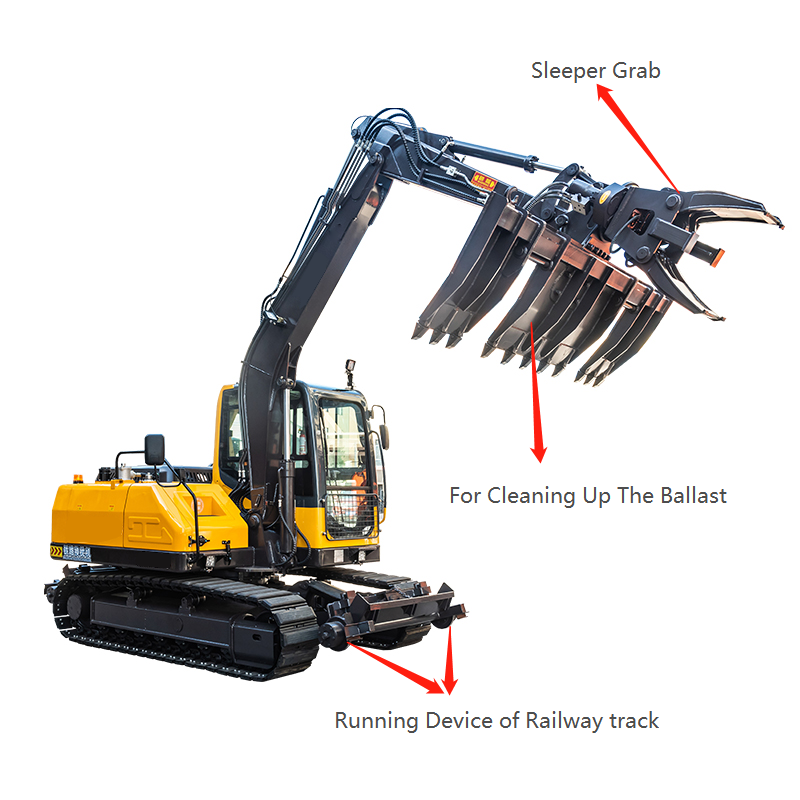

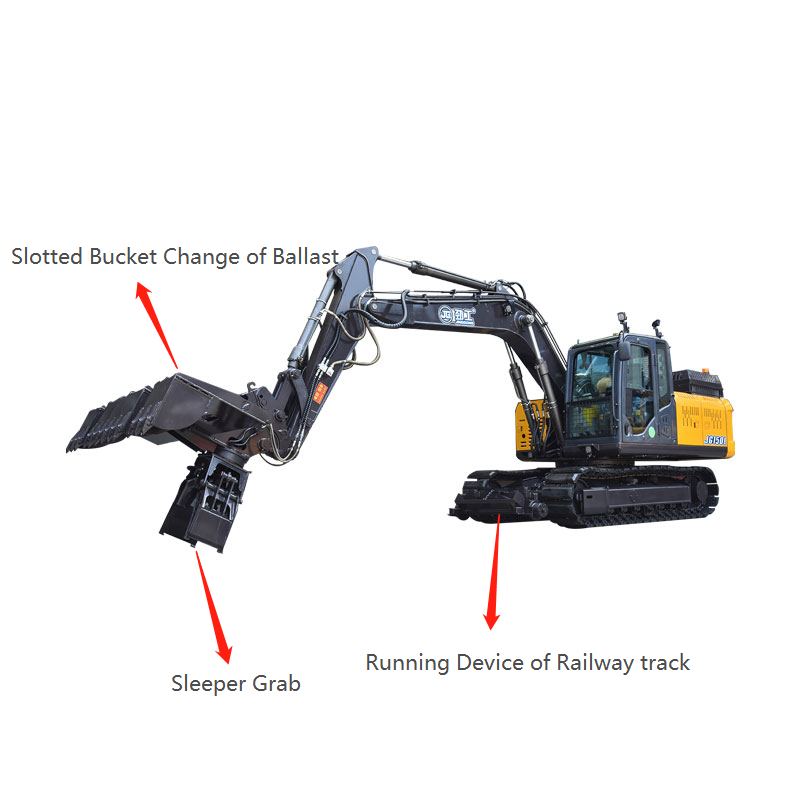

① Sleeper changer attachment
Max. opening width of grab
650mm
Min. opening width of grab
200mm
Max. radius grabing weight
0.5~0.6t
Max.width of grab
2000mm (customized acceptable)
Grapple rotation angle
360°
② Dimensions
(L*W*H) Transport Dimensions
6100*2800*2650mm
Roller gauge
2600mm
Track gauge
1570mm
Width Of Crawler
400mm
Ground clearance of counterweight
780mm
Min ground clearance
280mm
③ Tech performance and specification
Applicable railway track gauge
1000mm(customized based on your requirement)
Efficiency
≥40pic/h
Angle of rotation
360°
Machine weight
8000kg
Engine model
玉柴YUCHAI国II）
Rated Power
48~55KW
Rated Speed
2200~2300r/min
